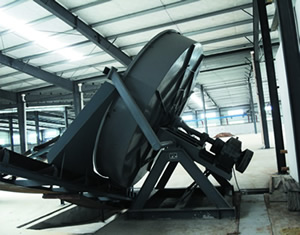

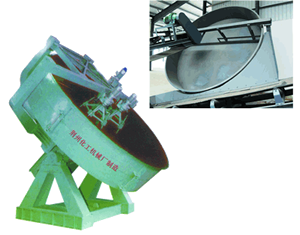

圆盘造粒机是目前我国用得最多的造粒机设备之一。它具有结构简单、造价低、维修方便、其产品颗粒圆整均匀,可自动分级,成球率高、返料比小、生产强度大、操作直观等优点,故在中小型复混肥企业得到广泛应用。
圆盘造粒机是由一个倾斜安装的圆盘装在垂直于盘面的中心轴上,中心轴支在机架的轴上,由传动装置带动旋转。圆盘的倾角可根据造粒需要由角度调节机构来调整,盘面上的刮刀装在刮刀上,刮刀与盘底的距离可以上下调节,以便根据造粒的需要控制部料层的厚度。
Circular granulator is one of widely used granulators in our country presently. It has the following advantages: simple structure, low cost, convenient to maintain, round and even granule, leverage automatically, high rate bell forming, material return rate is low, high production intensity, simple operation, so it is widely used in medium and small sized concentrated fertilizer company.
Circular granulator is assembled onto central axis vertical with plate surface with an inclined round plate, central axis is supported on the axis of rack, revolving driven by transmittall device. The inclination of round plate can be adjusted by angle adjustment organization basing the need of granulation. The shaver on the surface of plate is assembled onto shaver. The distance between shaver and bottom plate can be adjusted up and down so that the thickness of material can be controllde by the needs of granulation.
主要技术参数 |
型号 | 圆盘直径 (mm) |
盘边高度 (mm) |
转速 (k/min) |
生产能力 (t/h) |
电机功率 (kw) |
---|---|---|---|---|---|
FYL20 | 2000 | 400 | 15 | 1.2 | 5.5 |
FYL22 | 2200 | 400 | 15 | 1.5-2.5 | 7.5 |
FYL25 | 2500 | 500 | 14 | 2.5-4 | 7.5 |
FYL28 | 2800 | 600 | 13 | 3.5 | 7.5 |
FYL30 | 3000 | 600 | 13 | 3.5-6 | 11 |
FYL35 | 3500 | 600 | 13 | 5-9 | 15 |
